SDS 2024 - Cleantech RAG¶

By Daniel Perruchoud and George Rowlands

Introduction¶

This notebook delves into the exciting realm of Cleantech using a dataset of nearly 10,000 news articles from Kaggle, all centered around the energy sector. We'll embark on a journey that includes data exploration, text preprocessing, and culminates in the creation of a Retrieval-Augmented Generation Pipeline (RAG). This powerful approach empowers us to construct an LLM (Large Language Model) that can intelligently answer user queries, drawing upon the knowledge from our curated news articles.

Why RAG? A Cost-Effective and Dynamic Solution¶

Fine-tuning an LLM can be a resource-intensive and inflexible process. RAG offers a compelling alternative. It leverages a semantic search to pinpoint relevant sections within our news articles that directly address a user's question. These retrieved sections are then provided to the LLM as context, enabling it to deliver informed and insightful responses.

Setup¶

To run this notebook we recommend downloading the provided GitHub repository and opening this notebook in Google Colab. To ensure a smooth experience, you'll need:

• An OpenAI API key for GPT-4 and embedding models
• A Google account for Google Colab
• Python packages (automatically installed within the notebook)

At the start of the notebook a data.zip will be downloaded from a Google Drive and unzipped. This will then provide you with files that contain checkpoints for all of the expensive processing sections such as chunking, generating embeddings and evaluating the pipeline with an LLM as a judge. This saves you money and a lot of time.

If you can't or don't want to run this notebook you can also view the completed notebook by opening the cleantech_rag.html file in your browser.

Unveiling the Depths of RAG Pipelines¶

Throughout this notebook, we'll delve into the intricate workings of RAG pipelines. Prepare to explore:

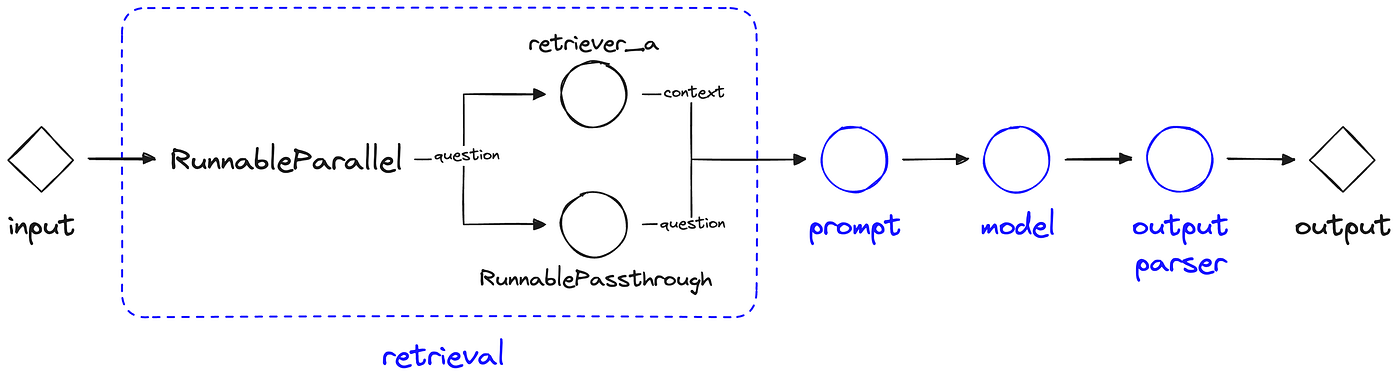

• Building a Robust RAG Pipeline:
  • LLM: GPT-4 turbo
  • Semantic Search: ChromaDB with HNSW for fast retrieval
  • Embedding Models: OpenAI, BGE-M3, all-MiniLM-L6-v2
  • Chunking Strategies: Recursive (256 & 1024 chunk sizes) and Semantic Chunking
• Understanding RAG's Inner Workings:
  • Examining the embedding space of news articles
  • Demystifying the semantic search process
• Visualization and Explanation:

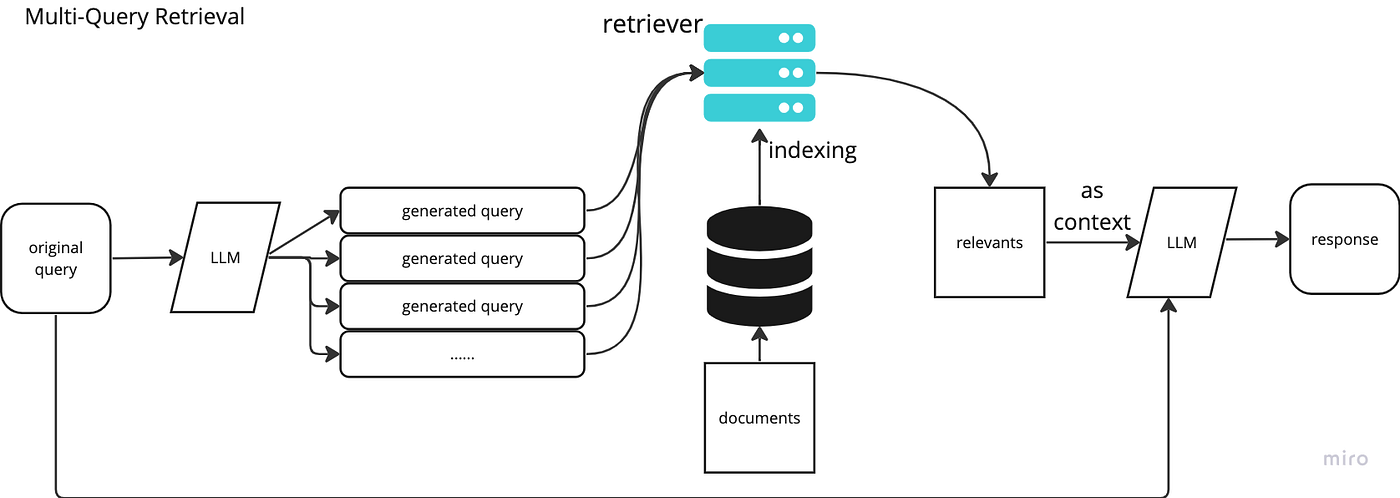

  • Visualizing the impact of advanced strategies like HyDE and Multi-querying
• Evaluation and Comparison:
  • RAGAS for LLM-based evaluation
  • Traditional retrieval metrics

Questions or Issues? We're Here to Help!

If you encounter any roadblocks or have questions, please don't hesitate to reach out to George Rowlands

Installing Dependencies¶

%%writefile requirements.txt

chromadb==0.5.0
datasets==2.19.1
gdown==5.2.0
kaggle==1.6.1
langchain==0.2.0
langchain-community==0.2.0
langchain-experimental==0.0.59
langchain-openai==0.1.7
langdetect==1.0.9
lorem-text==2.1
nbformat>=4.2.0
plotly==5.22.0
pretty-jupyter==1.0
ragas==0.1.8
seaborn==0.13.2
sentence-transformers==3.0.0
spacy>=3.7
textstat==0.7.3
umap-learn==0.5.5

Overwriting requirements.txt

%pip install torch==2.3.0 --quiet --index-url https://download.pytorch.org/whl/cu121

Note: you may need to restart the kernel to use updated packages.

%pip install -r ./requirements.txt --quiet

Note: you may need to restart the kernel to use updated packages.

import json
import os
import warnings
import zipfile
from collections import Counter
from pathlib import Path
from typing import Dict, List

import chromadb
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import plotly.express as px
import plotly.graph_objects as go
import seaborn as sns
import torch
from chromadb import Collection, Documents, EmbeddingFunction, Embeddings
from datasets import Dataset
from dotenv import load_dotenv
from langdetect import detect
from lorem_text import lorem
from ragas import RunConfig, evaluate
from ragas.metrics import (faithfulness, answer_relevancy, context_relevancy, answer_correctness)
from spacy.lang.en import English
from textstat import flesch_reading_ease
from tqdm import tqdm
import umap

from langchain.chains.base import Chain
from langchain.text_splitter import RecursiveCharacterTextSplitter, TextSplitter
from langchain_community.embeddings import HuggingFaceEmbeddings
from langchain_community.vectorstores import Chroma, VectorStore
from langchain_core.callbacks import CallbackManagerForRetrieverRun
from langchain_core.documents import Document
from langchain_core.embeddings import Embeddings
from langchain_core.language_models import LLM
from langchain_core.output_parsers import StrOutputParser
from langchain_core.prompts import ChatPromptTemplate
from langchain_core.retrievers import BaseRetriever
from langchain_core.runnables import RunnableParallel, RunnablePassthrough
from langchain_experimental.text_splitter import SemanticChunker
from langchain_openai import ChatOpenAI, OpenAIEmbeddings

load_dotenv()
warnings.filterwarnings("ignore")

!gdown 1MoT_s_Zk4dzRRy7E7Va5ZuTROIOI1FfZ

with zipfile.ZipFile("data.zip", "r") as zip_file:
    zip_file.extractall()

Setting your OpenAI Key¶

This OpenAI Key is used for the following tasks:

• Generating embeddings for our semantic search.
• Leveraging GPT-4-turbo as our LLM in our RAG pipeline and as our judge in RAGAS.

To set it rename the .env-example file to .env and add the key in the provided slot.

openai_key = "sk-XXXXXXXXXXXXXXXX"

Setting up our LLM¶

To make sure our OpenAI Key is working we will test it by generating a response from GPT-4-turbo which we will later on also be using in our RAG pipeline. Try some different prompts or questions to see how the model responds.

llm = ChatOpenAI(model="gpt-3.5-turbo")
question_prompt = ChatPromptTemplate.from_template(
    "Answer the following question: {question}")
question_chain = question_prompt | llm | StrOutputParser()
question_chain.invoke({"question": "What is the meaning of life?"})

'The meaning of life is a complex and subjective concept that varies from person to person. Some may believe that the meaning of life is to seek happiness and fulfillment, others may see it as a journey of self-discovery and personal growth, while others may find meaning in their relationships with others or in their contributions to society. Ultimately, the meaning of life is a deeply personal and individual question that each person must explore and define for themselves.'

Downloading the Dataset from Kaggle¶

We will be exploring the following Cleantech Media Dataset. If you have opened this notebook as recommended by opening the provided Github repository in Google Colab then you don't need to to download the dataset. It should already be under data/bronze. If not then you can either manually download it and upload it into a data/bronze folder or follow the steps below.

Using the Kaggle API¶

We will be using the Kaggle API to download the data.

To use the Kaggle API you will need a Kaggle account. If you don't already have one, sign up for a Kaggle account at https://www.kaggle.com. When you are logged in, go to the 'Settings' tab of your user profile https://www.kaggle.com/settings and select 'Create New Token'. This will trigger the download of kaggle.json, a file containing your API credentials.

You can then add your Kaggle username and key from the kaggle.json file to the .env file just like with the OpenAI Key.

data_folder = Path("./data")
if not data_folder.exists():
    data_folder.mkdir()
bronze_folder = data_folder / "bronze"
if not bronze_folder.exists():
    bronze_folder.mkdir()

%%script echo skipping
kaggle_user = "XXXXXXXXXXXXXXXX"
kaggle_key = "XXXXXXXXXXXXXXXX"

skipping

%%script echo skipping
os.system(f"kaggle datasets download -d jannalipenkova/cleantech-media-dataset -p {bronze_folder}")

skipping

%%script echo skipping
with zipfile.ZipFile(bronze_folder / "cleantech-media-dataset.zip", "r") as zip_file:
    zip_file.extractall(bronze_folder)

skipping

Loading the Dataset into Dataframes¶

articles_df = pd.read_csv(
    bronze_folder / "cleantech_media_dataset_v2_2024-02-23.csv",
    encoding='utf-8', index_col=0)
articles_df.head()

human_eval_df = pd.read_csv(
    bronze_folder / "cleantech_rag_evaluation_data_2024-02-23.csv",
    encoding='utf-8', index_col=0)
human_eval_df.head()

Explorative Data Analysis & Preprocessing¶

As the saying goes, "garbage in, garbage out." In the realm of machine learning, the quality of our outputs hinges on the quality of our inputs. This section delves into the essential processes of Exploratory Data Analysis (EDA) and data preprocessing. Through EDA, we'll illuminate the characteristics, patterns, and potential quirks residing within our cleantech news article dataset. Preprocessing will ensure our data is cleansed, structured, and prepared to be effectively utilized by the RAG pipeline, laying the foundation for high-quality results.

Let us start by gaining an overview of the datasets features (columns).

articles_df.describe()

articles_df.info()

<class 'pandas.core.frame.DataFrame'>
Index: 9593 entries, 1280 to 81816
Data columns (total 6 columns):
 #   Column   Non-Null Count  Dtype
---  ------   --------------  -----
 0   title    9593 non-null   object
 1   date     9593 non-null   object
 2   author   31 non-null     object
 3   content  9593 non-null   object
 4   domain   9593 non-null   object
 5   url      9593 non-null   object
dtypes: object(6)
memory usage: 524.6+ KB

Our initial exploration reveals that the "author" column only contains data for 31 out of 9593 articles. Since this offers minimal information gain, we can remove this feature.

We've also observed that some titles and content entries appear to be non-unique. This might necessitate identifying and removing duplicate entries.

On a positive note, the article URLs are all unique, potentially serving as suitable unique identifiers for the data.

articles_df = articles_df.drop(columns=["author"])

Article Domains¶

The dataset helpfully provides the domain names extracted from the article URLs. These domains essentially represent the publishers of the news articles. Let's analyze the distribution of publishers and see how many articles each publisher has contributed.

domain_counts = articles_df["domain"].value_counts()
domain_counts

domain
cleantechnica            1861
azocleantech             1627
pv-magazine              1206
energyvoice              1017
solarindustrymag          673
naturalgasintel           658
thinkgeoenergy            645
rechargenews              559
solarpowerworldonline     505
energyintel               234
pv-tech                   232
businessgreen             158
greenprophet               80
ecofriend                  38
solarpowerportal.co        34
eurosolar                  28
decarbxpo                  19
solarquarter               17
indorenergy                 2
Name: count, dtype: int64

barplot = sns.barplot(
    x=domain_counts.values,
    y=domain_counts.index,
    hue=domain_counts.index
)

barplot.set_title('Article Counts by Domain')
barplot.set_xlabel('Article Count')
barplot.set_ylabel('Domain')

plt.show()

Our exploration of article domains reveals a skewed distribution. Publishers like cleantechnica have a significantly higher representation (1861 articles), while others like indoenergy have minimal contributions (2 articles). If we proceed with sampling this data, this imbalance should be taken into account. Stratified sampling could be a viable approach to ensure a representative sample across different publishers.

Article Dates¶

Each article within the dataset is accompanied by a publication date. Let's delve into the temporal range of these articles and investigate any noteworthy patterns in publication trends.

# plot the amount of articles over time
articles_df["date"] = pd.to_datetime(articles_df["date"])
time_df = articles_df.groupby("date").size().reset_index()
time_df.columns = ["date","count"]

time_df.describe()

sns.lineplot(data=time_df, x="date", y="count")
plt.title("Article Count Over Time")
plt.xlabel("Date")
plt.xticks(rotation=90)
plt.ylabel("Article Count")
# add a line for the average
avg_count = time_df["count"].mean()
plt.axhline(avg_count, color='r', linestyle='--', label=f"Average article count per day: {avg_count:.2f}")
plt.legend()
plt.show()

While the daily article count appears consistent overall, a significant outlier disrupts the pattern on the 2023-12-05. The cause of this outlier is undetermined, but it could potentially be the date the data was scraped and the default value assigned for missing dates. Since the publication date is not crucial for RAG pipeline, we can remove it.

articles_df = articles_df.drop(columns=["date"])

Article Titles¶

As noted in our initial exploration, some articles share identical titles. Here, we'll focus on identifying and handling these duplicate titles to ensure a clean and consistent dataset for our RAG pipeline.

sns.histplot(articles_df["title"].str.len())
plt.title("Title Length Distribution")
plt.xlabel("Title Length")
plt.ylabel("Count")
avg_count = articles_df["title"].str.len().mean()
plt.axvline(avg_count, color='r', linestyle='--', label=f"Average title length: {avg_count:.2f}")
plt.legend()
plt.show()

articles_df["title"].duplicated().sum()

24

duplicate_titles = articles_df[articles_df["title"].duplicated(keep=False)].sort_values("title")
duplicate_titles.head(10)

duplicate_titles["content"].duplicated().sum()

0

Our exploration identified 24 titles that appear multiple times in the dataset. Examples include "About David J. Cross." Interestingly, while the titles are identical, the content itself appears to be unique.

Here are some additional observations for further investigation:

• A pattern was found where some articles begin with the phrase "By clicking." We'll delve into this further to determine the potential impact when analzing the article contents.
• We can observe instances of articles with seemingly similar content but differing URLs containing "sgvoice.energyvoice.com" and "energyvoice.com." Let's explore these cases to understand the potential distinction between them.

def wrap_text(text: str, char_per_line=100) -> str:
    # for better readability, wrap the text at the last space before the char_per_line
    if len(text) < char_per_line:
        return text
    else:
        return text[:char_per_line].rsplit(' ', 1)[0] + '\n' + wrap_text(text[len(text[:char_per_line].rsplit(' ', 1)[0])+1:], char_per_line)

print(duplicate_titles.iloc[0]["title"])
print(wrap_text(duplicate_titles.iloc[0]["content"]))

Aberdeen’ s NZTC plans national centre for geothermal energy
['Aberdeen’ s NZTC is planning a national centre to accelerate geothermal energy in the UK and
become the “ go-to ” hub globally for the renewable technology.', 'Calum Watson, senior project
engineer at the Net Zero Technology Centre, has outlined ambitions for the oil and gas industry to
help ramp up the clean energy, both onshore and in the North Sea.', 'The NZTC’ s new “ National
Geothermal Innovation Centre ” would develop technology and help create “ bespoke regulation ” for
geothermal, with the aim of it providing 5% of UK energy needs by 2030.', 'By 2050, Mr Watson said
geothermal could account for 20% of Britain’ s energy mix, slashing carbon emissions in the
process.', 'Geothermal is a burgeoning technology – which has been picked up in some countries like
Iceland and the Philippines – which harnesses heat in the subsurface of the earth to generate
electricity.', 'Some barriers to its uptake include expensive up-front costs like exploration and
drilling.', 'However a report published this week by trade body Offshore Energies UK said there are
2,100 offshore oil and gas wells to be decommissioned in the North Sea next decade – which Mr
Watson described as a “ massive opportunity ” for geothermal', 'Based at a “ north-east location ”,
the new hub would be the “ go to centre globally for geothermal technology challenges but,
crucially, would be world-leading in supporting government, and creating legislation and best
practice for geothermal ”.', 'Speaking at the Offshore Decommissioning Conference in St Andrews on
Tuesday, Mr Watson did not disclose whether the plan had backers or when it might be set up.', 'He
said it would be achieved through a “ partner-led roadmap ” akin to the NZTC itself – which is
funded with £180m of UK and Scottish Government funding – and ultimately be powered by geothermal
energy.', 'The national base would comprise a “ solution centre ” to scale up technologies from
pilot stage.', 'It would also have a knowledge hub to share learnings and an “ accelerator
programme ” to fund start-ups.', 'The NZTC has already dipped its toe into the tech – supporting a
“ first of its kind ” test project for the EnQuest Magnus platform in the North Sea.', 'Mr Watson
set out his hopes for what the centre could achieve by 2030, and highlighted the opportunity for
oil and gas workers to transfer to the sustainable technology.', '“ ( By 2030) we want the centre
to have delivered geothermal energy, accounting for 5% of the UK’ s energy mix and on route for 20%
by 2050.', '“ We would have multiple demonstrators successfully delivered to showcase and educate
and, long term, the center will be run on geothermal energy.']

print(duplicate_titles.iloc[1]["title"])
print(wrap_text(duplicate_titles.iloc[1]["content"]))

Aberdeen’ s NZTC plans national centre for geothermal energy
['Aberdeen’ s NZTC is planning a national centre to accelerate geothermal energy in the UK and
become the “ go-to ” hub globally for the renewable technology.', 'Calum Watson, senior project
engineer at the Net Zero Technology Centre, has outlined ambitions for the oil and gas industry to
help ramp up the clean energy, both onshore and in the North Sea.', 'The NZTC’ s new “ National
Geothermal Innovation Centre ” would develop technology and help create “ bespoke regulation ” for
geothermal, with the aim of it providing 5% of UK energy needs by 2030.', 'By 2050, Mr Watson said
geothermal could account for 20% of Britain’ s energy mix, slashing carbon emissions in the
process.', 'Geothermal is a burgeoning technology – which has been picked up in some countries like
Iceland and the Philippines – which harnesses heat in the subsurface of the earth to generate
electricity.', 'Some barriers to its uptake include expensive up-front costs like exploration and
drilling.', 'However a report published this week by trade body Offshore Energies UK said there are
2,100 offshore oil and gas wells to be decommissioned in the North Sea next decade – which Mr
Watson described as a “ massive opportunity ” for geothermal', 'Based at a “ north-east location ”,
the new hub would be the “ go to centre globally for geothermal technology challenges but,
crucially, would be world-leading in supporting government, and creating legislation and best
practice for geothermal ”.', 'Speaking at the Offshore Decommissioning Conference in St Andrews on
Tuesday, Mr Watson did not disclose whether the plan had backers or when it might be set up.', 'He
said it would be achieved through a “ partner-led roadmap ” akin to the NZTC itself – which is
funded with £180m of UK and Scottish Government funding – and ultimately be powered by geothermal
energy.', 'The national base would comprise a “ solution centre ” to scale up technologies from
pilot stage.', 'It would also have a knowledge hub to share learnings and an “ accelerator
programme ” to fund start-ups.', 'The NZTC has already dipped its toe into the tech – supporting a
“ first of its kind ” test project for the EnQuest Magnus platform in the North Sea.', 'Mr Watson
set out his hopes for what the centre could achieve by 2030, and highlighted the opportunity for
oil and gas workers to transfer to the sustainable technology.', '“ ( By 2030) we want the centre
to have delivered geothermal energy, accounting for 5% of the UK’ s energy mix and on route for 20%
by 2050.']

Our analysis suggests potential redundancy within certain articles. In some cases, the second article might appear to be the first article with an additional sentence appended at the end.

Let's take a closer look at these "energyvoice" articles and how the contents start and see if we can eliminate these redundancies.

energyvoice_articles = articles_df[articles_df["domain"].str.contains("energyvoice")]
energyvoice_articles.content.map(lambda x: x[:50]).value_counts()

content
['', '', 'The Megawatt Hour is the latest podcast     6
['A group of trade associations from across the en    3
['Two years after the Amazon Pledge Fund invested     3
['The latest analysis shows that capital flows tow    2
['Macquarie Group is betting the North Sea – engin    2
                                                     ..
['Now more than ever – in terms of cost and the im    1
['Scientists have hailed a helium discovery which     1
['Marine equipment fabrication and rental speciali    1
['The Russian powers behind oil explorers Exillon     1
['Aberdeen-headquartered Repsol Sinopec Resources     1
Name: count, Length: 980, dtype: int64

def remove_prefix_articles(df: pd.DataFrame, prefix_len: int = 100) -> pd.DataFrame:
    """
    Takes O(n^2) time complexity
    If the first {prefix_len} characters of the article are the same, then we consider them as a prefix.
    If an article is a prefix of a longer article, then we remove it.
    If an article is a prefix of longer article, but they have different titles, then we keep them.
    """

    df["char_len"] = df["content"].map(len)
    df = df.sort_values(by='char_len', ascending=True).reset_index(drop=True)

    # Initialize a list to keep the articles that are not prefixes of others
    non_prefix_articles = []

    for i, row in df.iterrows():
        is_prefix = False
        content_i = row['content'][:prefix_len]
        title_i = row['title']

        for j in range(i + 1, len(df)):
            content_j = df.at[j, 'content'][:prefix_len]
            title_j = df.at[j, 'title']

            if content_i == content_j:
                # If the prefix matches but the titles are different, we keep it
                if title_i != title_j:
                    continue
                else:
                    is_prefix = True
                    break

        if not is_prefix:
            non_prefix_articles.append(row)

    print(f"Removed {len(df) - len(non_prefix_articles)} prefix articles")
    return pd.DataFrame(non_prefix_articles)

energyvoice_articles = remove_prefix_articles(energyvoice_articles)
energyvoice_articles.content.map(lambda x: x[:100]).value_counts()

Removed 11 prefix articles

content
['', '', 'The Megawatt Hour is the latest podcast boxset brought to you by Energy Voice Out Loud in     6
['Two years after the Amazon Pledge Fund invested in Hippo Harvest, the company is selling its first    3
['A group of trade associations from across the energy sector have written to the Chancellor urging     3
['Global Port Services has confirmed the award of multiple contracts in support of the Seagreen wind    2
['DNV report shows Jotun’ s Baltoflake solution offers beyond 30 years’ protection for offshore asse    2
                                                                                                       ..
['The deal volume for renewable energy assets in Asia more than tripled to $ 13.6 billion in 2021, a    1
['Several young energy professionals have undertaken a voyage across Scotland to spotlight the count    1
['A UK-backed research group unveiled a design for a liquid hydrogen-powered airliner theoretically     1
['UK-listed Pharos Energy is excited about its upcoming Vietnam activities with a 3D seismic shoot l    1
['With the greatest and most urgent energy transition in human history accelerating, the quest for n    1
Name: count, Length: 981, dtype: int64

There still seem to be be some redundancy, but we did manage to remove 11 duplicates.

Article Contents¶

Having explored various aspects of our dataset, we now turn our attention to the heart of the matter: the article content itself. This section will delve into the analysis and preprocessing techniques we'll employ to ensure the content is high-quality and effectively utilized by our RAG pipeline.

np.random.seed(7)
random_sample_id = np.random.choice(articles_df.index)
print(wrap_text(articles_df.loc[random_sample_id, "content"]))

['Enphase Energy Inc., a supplier of microinverter-based solar and battery systems, says its
partner Lumio will be significantly expanding its offering of Enphase IQ8 microinverters and IQ
batteries to customers across the United States.', 'The strategic relationship with Lumio will
amplify the impact and distribution of Enphase systems, providing homeowners more access to
reliable, sustainable and grid-independent power sources, the company says.', '“ We are excited
about Enphase’ s full suite of products – including microinverters, batteries and EV chargers –
that can provide our customers best-in-class home energy management solutions, ” says Greg
Butterfield, CEO at Lumio. “ Additionally, the Enphase digital platform, from lead generation to
permitting to ongoing operations and maintenance services, offers a unique ability for Lumio to
increase efficiencies and reduce costs. ”', 'For homeowners who want battery backup, there are no
sizing restrictions on pairing Enphase IQ batteries with IQ8 microinverters, and the Sunlight Jump
Start feature can restart a home energy system – switching to sunlight-only after prolonged grid
outages that may result in a fully depleted battery. This eliminates the need for a manual restart
of the system and gives homeowners greater assurance of energy resilience.', '“ This strategic
relationship with Enphase makes it easier for Lumio’ s customers to take control of their power
production, power consumption, and increase the security and reliability of their family’ s power
supply, ” adds David Schonberg, senior vice president of energy partnerships at Lumio.', 'Solar
Industry offers industry participants probing, comprehensive assessments of the technology, tools
and trends that are driving this dynamic energy sector. From raw materials straight through to
end-user applications, we capture and analyze the critical details that help professionals stay
current and navigate the solar market.', '© Copyright Zackin Publications Inc. All Rights
Reserved.']

Our initial examination reveals that article content is currently stored as a list of strings. To gain deeper understanding and facilitate preprocessing, we'll transform these lists into a more cohesive textual format.

articles_df['article'] = articles_df['content'].apply(lambda x: ' '.join(eval(x)))
print(wrap_text(articles_df.loc[random_sample_id, "article"]))

Enphase Energy Inc., a supplier of microinverter-based solar and battery systems, says its partner
Lumio will be significantly expanding its offering of Enphase IQ8 microinverters and IQ batteries
to customers across the United States. The strategic relationship with Lumio will amplify the
impact and distribution of Enphase systems, providing homeowners more access to reliable,
sustainable and grid-independent power sources, the company says. “ We are excited about Enphase’ s
full suite of products – including microinverters, batteries and EV chargers – that can provide our
customers best-in-class home energy management solutions, ” says Greg Butterfield, CEO at Lumio. “
Additionally, the Enphase digital platform, from lead generation to permitting to ongoing
operations and maintenance services, offers a unique ability for Lumio to increase efficiencies and
reduce costs. ” For homeowners who want battery backup, there are no sizing restrictions on pairing
Enphase IQ batteries with IQ8 microinverters, and the Sunlight Jump Start feature can restart a
home energy system – switching to sunlight-only after prolonged grid outages that may result in a
fully depleted battery. This eliminates the need for a manual restart of the system and gives
homeowners greater assurance of energy resilience. “ This strategic relationship with Enphase makes
it easier for Lumio’ s customers to take control of their power production, power consumption, and
increase the security and reliability of their family’ s power supply, ” adds David Schonberg,
senior vice president of energy partnerships at Lumio. Solar Industry offers industry participants
probing, comprehensive assessments of the technology, tools and trends that are driving this
dynamic energy sector. From raw materials straight through to end-user applications, we capture and
analyze the critical details that help professionals stay current and navigate the solar market. ©
Copyright Zackin Publications Inc. All Rights Reserved.

articles_df["article"].duplicated().sum()

5

duplicate_articles = articles_df[articles_df["article"].duplicated(keep=False)].sort_values("article")
duplicate_articles

Our analysis uncovers additional insights regarding content duplication. We observe cases where seemingly identical articles are reposted on the same domain but with different titles (excluding the "sgvoice.energyvoice.com" vs. "energyvoice.com" scenario previously addressed). Here, we'll strategically keep these duplicates where contents are the same but titles are different.

Importance of Titles

We keep these duplicate articles because titles can hold significant relevance for our RAG pipeline. Consider a scenario where a user query uses an abbreviation, while the corresponding article only contains the abbreviation in the title, in the content always the full term is used. To bridge this gap, we'll prepend titles to the article content during preprocessing. This ensures that the retrieval process considers not only the content itself, but also the potentially informative titles.

Next Step

As previously noted, some articles exhibit standardized introductions, possibly artifacts of the data scraping process. We'll develop appropriate techniques to handle these introductions during preprocessing, ensuring they don't hinder the effectiveness of our RAG pipeline.

articles_df.article.map(lambda x: x[:50]).value_counts()

article
By clicking `` Allow All '' you agree to the stori    1627
Sign in to get the best natural gas news and data.     658
window.dojoRequire ( [ `` mojo/signup-forms/Loader      52
None of these red flags by themselves make a compa      19
Volkswagen ID.4 sales were up 254% in the 1st quar      14
                                                      ...
You want to invest in renewable energy or a better       1
The best way to deal with carbon is not to release       1
When there is deflation, the prices of goods in th       1
Stickers are excellent products to leverage in bot       1
Arevon Energy Inc. has closed financing on the Vik       1
Name: count, Length: 6765, dtype: int64

artifacts = [
    "By clicking `` Allow All '' you agree to the sto",
    "Sign in to get the best natural gas news and dat",
    "window.dojoRequire ( [ `` mojo/signup-forms/Load"
]

for artifact in artifacts:
    print(wrap_text(articles_df[articles_df.article.str.startswith(artifact)].article.iloc[0][:500]))
    print()

By clicking `` Allow All '' you agree to the storing of cookies on your device to enhance site
navigation, analyse site usage and support us in providing free open access scientific content.
More info. Nel Hydrogen is committed to pushing the boundaries of science and continues to support
the research and development of new and innovative technologies. A group of leading researchers and
two employees of Proton Energy Systems, Inc., a subsidiary of Nel ASA ( Nel Hydrogen) have recently
published

Sign in to get the best natural gas news and data. Follow the topics you want and receive the daily
emails. Your email address * Your password * Remember me Continue Reset password Featured Content
News & Data Services Client Support Bidweek Markets | Natural Gas Prices | NGI All News Access
Major fluctuations in the latest weather models resulted in big swings in natural gas bidweek
prices, with solid gains on the East Coast and out West. However, much of the country’ s midsection
posted hefty

window.dojoRequire ( [ `` mojo/signup-forms/Loader '' ], function ( L) { L.start ( { `` baseUrl '':
'' mc.us4.list-manage.com '', '' uuid '': '' 2a6df7ce0f3230ba1f5efe12c '', '' lid '': '' 1e23cc3ebd
'', '' uniqueMethods '': true }) }) American consumers are more concerned about the planet than
steady economic growth, new report. Your company wants to be a part of this. What steps do you
take? Each company should create detailed reports that evaluate the environmental impact of the
business, num

def remove_scrapping_artifacts(df: pd.DataFrame, column: str) -> pd.DataFrame:
    text_artifacts = [
        "By clicking `` Allow All '' you agree to the storing of cookies on your device to enhance site navigation, analyse site usage and support us in providing free open access scientific content. More info.",
        "Sign in to get the best natural gas news and data. Follow the topics you want and receive the daily emails. Your email address * Your password * Remember me Continue Reset password Featured Content News & Data Services Client Support"
    ]

    regex_artifacts = [
        r"window.dojoRequire \( \[ .*\}\) \}\) "
    ]

    for pattern in text_artifacts:
        articles_df[column] = articles_df[column].str.replace(pattern, '', regex=False)

    for pattern in regex_artifacts:
        articles_df[column] = articles_df[column].str.replace(pattern, '', regex=True)

    return df

articles_df = remove_scrapping_artifacts(articles_df, "article")
articles_df.article.map(lambda x: x[:50]).value_counts()

article
 Daily GPI Energy Transition | Infrastructure | NG    38
 Daily GPI E & P | NGI All News Access The U.S. na    36
 Daily GPI Energy Transition | NGI All News Access    28
None of these red flags by themselves make a compa    19
 Daily GPI Markets | Natural Gas Prices | NGI All     17
                                                      ..
 Award winning cleantech firm Aceleron’ s repairab     1
 Generating safe, green energy is one thing but pr     1
 Countries around the world need to move further a     1
 The sun is arguably the most important renewable      1
Arevon Energy Inc. has closed financing on the Vik     1
Name: count, Length: 8749, dtype: int64

Our efforts have successfully eliminated a substantial portion of the scrapping artifacts within the articles. However, some traces still persist, likely remnants of past website navigation structures. While removing these remaining artifacts could offer further refinement, it also presents a significant challenge. Therefore, we'll acknowledge this for now and move onto further preprocessing such as filtering out articles that are not in english.

articles_df["lang"] = articles_df["article"].map(detect)
articles_df["lang"].value_counts()

lang
en    9588
de       4
ru       1
Name: count, dtype: int64

articles_df[articles_df["lang"] != "en"]

print(wrap_text(articles_df[articles_df["lang"] != "en"].iloc[1]["article"][1000:]))

 suffering and misery for over a century, while distracting from the one common enemy threatening
to consume all: accelerated fossil fueled climate heating. The Ukraine’ s EUROSOLAR section and its
networks have long advocated a new age with renewable energy in Eastern Europe. Together with all
of our other sections and members across the European continent, from Russia to the Netherlands,
and from Turkey to Denmark, EUROSOLAR offers this Climate Peace Platform. Prof. Peter Droege,
President of EUROSOLAR: “ The time has come for Climate Peace Diplomacy, to confront everyone’ s
common enemy: advanced fossil climate destabilization. This is one of ten actions presented by
EUROSOLAR as the main agenda of our time. ” Dr. Brigitte Schmidt, Vice President and Board Member
of EUROSOLAR Germany: ‘ The time for renewable peace has come, part of our Regenerative Earth
Decade program. It stands for rethinking and peaceful action for our common future.’ Since its very
foundation in 1988 EUROSOLAR has worked to end fossil fuel wars through the great switch to 100%
renewable energy. In the words of Hermann Scheer ( 1944-2010), founder of EUROSOLAR: ‘ Renewable
energies build peace’. The age of fossil-nuclear threats must end, the existential focus must
begin: www.earthdecade.org. EUROSOLAR also calls for a shift in thinking towards climate peace
diplomacy that recognizes and combats fossil dependencies as humanity’ s greatest common enemy.
https:
//www.eurosolar.org/en/2022/02/01/regenerative-earth-decade-eurosolars-call-for-climate-peace-diplom
cy/ Відкритий лист президентам Путіну, Байден, Зеленський і Лукашенко: Eurosolar, Європейська
асоціація відновлюваної енергетики, закликає до негайного припинення вогню та постійної мирної
угоди по всій Східній Європі, беручи участь у всесторонній кліматичній мирній дипломатії. Напад
російських військових на український народ і його уряд повинен бути засуджений найрішучішим чином і
повинен негайно припинитися. Всі країни, які використовують військові альянси для постійного
коригування сфер інтересів і постійно жокея для тактичних і стратегічних переваг, повинні припинити
свою дестабілізуючу практику. Всі сторони повинні прокинутися: ми не тільки всі дивлямося в ядерну
прірву через тривалі невдалі спроби роззброєння – планета також знаходиться в лещатах
неконтрольованої кліматичної спіралі, яка практично напевно зробить її непридатною для життя в
цьому поколінні. Eurosolar, Європейська асоціація відновлюваної енергетики, закликає до повного і
швидкого переходу до відновлюваної енергетики, щоб покласти край залежності Європи та світу від
викопного палива. Це призвело до нескінченної війни, невимовних страждань і страждань протягом
більш ніж століття, відволікаючи від одного спільного ворога, який погрожує споживати все:
прискорене нагрівання клімату на викопному паливі. Українська секція EUROSOLAR та її мережі вже
давно виступають за нову епоху відновлюваної енергетики у Східній Європі. Разом з усіма іншими
нашими секціями та членами на європейському континенті, від Росії до Нідерландів, а також від
Туреччини до Данії, EUROSOLAR пропонує цю кліматичну мирну платформу. Проф. Пітер Дроудж, Президент
EUROSOLAR: „ Настав час для кліматичної мирної дипломатії, щоб протистояти спільному ворогу
кожного: передовій дестабілізації викопного клімату. Це одна з десяти дій, представлених EUROSOLAR
як основний порядок денний нашого часу. “ З моменту свого заснування в 1988 році EUROSOLAR працював
над припиненням війни на викопному паливі шляхом великого переходу на 100% відновлювану енергію. За
словами Германа Шира ( 1944-2010), засновника EUROSOLAR: « Відновлювані джерела енергії створюють
мир ». Епоха викопно-ядерних загроз повинна закінчитися, повинен початися екзистенціальний фокус:
www.earthdecade.org. EUROSOLAR також закликає до зміни мислення в бік кліматичної мирної
дипломатії, яка визнає і бореться з викопними залежностями як найбільший спільний ворог людства.
https:
//www.eurosolar.org/en/2022/02/01/regenerative-earth-decade-eurosolars-call-for-climate-peace-diplom
cy/ Открытое письмо президентам Путину, Байдену, Зеленскому и Лукашенко: EUROSOLAR, Европейская
ассоциация возобновляемой энергетики, призывает к немедленному прекращению климатического огня и
заключению постоянного климатического мирного соглашения по всей Восточной Европе – и, таким
образом, к началу многосторонней климатической мирной дипломатии. Нападение российских военных на
украинский народ и его правительство должно быть осуждено самым решительным образом и немедленно
остановлено. Все страны, которые используют военные союзы для постоянной корректировки своих сфер
интересов и постоянной борьбы за тактическое и стратегическое преимущество, должны прекратить свою
дестабилизирующую практику. Все вовлеченные стороны должны проснуться: Мало того, что мы все
смотрим в ядерную бездну из-за длительных неудачных попыток разоружения – планета также находится в
неконтролируемой климатической спирали, которая почти наверняка сделает ее непригодной для жизни
уже в этом поколении. EUROSOLAR, Европейская ассоциация возобновляемых источников энергии,
призывает к полному и быстрому переходу на возобновляемые источники энергии, чтобы положить конец
зависимости Европы и всего мира от ископаемого топлива. Она привела к бесконечным войнам,
невыразимым страданиям и несчастьям на протяжении более века, отвлекая нас от одного общего врага,
который угрожает поглотить всех нас: ускоренного глобального потепления, вызванного ископаемым
топливом. Украинская секция EUROSOLAR и ее сети давно выступают за новую эру с возобновляемыми
источниками энергии в Восточной Европе. Вместе со всеми другими нашими секциями и членами по всему
европейскому континенту, от России до Нидерландов и от Турции до Дании, EUROSOLAR предлагает эту
платформу мира климату. Профессор Петер Дроге, президент EUROSOLAR: „ Настало время для
климатической мирной дипломатии, чтобы противостоять общему для всех врагу: дестабилизации климата
за счет передового ископаемого топлива. Это одно из десяти действий, которые EUROSOLAR представляет
как самую важную повестку дня нашего времени “. Доктор Бригитте Шмидт, вице-президент и член
правления EUROSOLAR Германия: „ Наступило время возобновляемого мира, часть нашей программы „
Возобновляемое десятилетие “. Он выступает за переосмысление и мирные действия во имя нашего общего
будущего. С момента своего основания в 1988 году компания EUROSOLAR работает над тем, чтобы
положить конец войнам за ископаемое топливо путем масштабного перехода на 100% возобновляемые
источники энергии. По словам Германа Шеера ( 1944-2010), основателя EUROSOLAR: „ Возобновляемые
источники энергии создают мир “. Век ископаемо-ядерных угроз должен закончиться, должна начаться
экзистенциальная ориентация: https: //www.earthdecade.org. EUROSOLAR призывает к переосмыслению в
сторону климатической мирной дипломатии, которая признает и борется с ископаемой зависимостью как
величайшим общим врагом человечества.https:
//www.eurosolar.org/en/2022/02/01/regenerative-earth-decade-eurosolars-call-for-climate-peace-diplom
cy/ Independent of political parties, institutions, companies and interest groups, EUROSOLAR has
been developing and stimulating political and economic action drafts and concepts for the
introduction of renewable energies since 1988. This ranges from market introduction strategies to
proposals for further research and development policy, from tax policy subsidies to arms conversion
with solar energy, from the contribution of solar energy for the Global South to agricultural,
transport and construction policy. Europäische Vereinigung für Erneuerbare Energien e. V.

articles_df = articles_df[articles_df["lang"] == "en"]

Our exploration revealed a small number of articles containing non-English content (some in German and 1 with a Russian section). Since most LLMs and embedding models are primarily trained on English text, removing these articles ensures compatibility with our chosen models for this notebook. For simplicity, we'll only focus on supporting English queries and responses within this RAG pipeline.

Challenges of Multilingual RAG Pipelines¶

Introducing multilingual capabilities into a RAG pipeline presents a layer of complexity. Here's a breakdown of some key challenges:

• Multilingual Model Support: Both the LLM and embedding models need to be proficient in all target languages (e.g., English and German). The LLM must be able to comprehend and generate text in these languages, while the embedding models should effectively map similar concepts across languages into the same semantic space.
• Prompt Engineering for Multilingual Responses: When a user submits a question in German, for instance, we'd ideally retrieve relevant articles, potentially also in English which can distract the LLM, and utilize prompt engineering to ensure the LLM generates a response in German.

Characters, Tokens and Words¶

Let us further analyze the contents of the articles. However, before we do so let us define the meaning of characters, tokens and words:

• Characters: The smallest unit of text, including letters, numbers, punctuation, and whitespace.
• Tokens: Most NLP models operate on tokens, which are sequences of characters that represent a single unit. These units can be words, subwords, or characters. Tokenization is the process of converting text into tokens. To see the tokenization process in action for the OpenAI GPT-4 model, check out the OpenAI GPT-4 Tokenizer.
• Words: Just as in everyday language, words are the building blocks of text. They are composed of one or more characters and are separated by whitespace.

sns.histplot(articles_df["article"].map(len), kde=True)

plt.title("Amount of characters in articles")
plt.xlabel("Amount of characters")
plt.ylabel("Number of articles")
median_char_len = articles_df["article"].map(len).median()
mean_char_len = articles_df["article"].map(len).mean()
plt.axvline(median_char_len, color='r', linestyle='--', label=f"Median character amount: {median_char_len:.2f}")
plt.axvline(mean_char_len, color='g', linestyle='--', label=f"Mean character amount: {mean_char_len:.2f}")
plt.legend()
plt.show()

sns.histplot(articles_df["article"].map(lambda x: len(x.split())), kde=True)

plt.title("Amount of words in articles")
plt.xlabel("Amount of words")
plt.ylabel("Number of articles")
median_word_len = articles_df["article"].map(lambda x: len(x.split())).median()
mean_word_len = articles_df["article"].map(lambda x: len(x.split())).mean()
plt.axvline(median_word_len, color='r', linestyle='--', label=f"Median word amount: {median_word_len:.2f}")
plt.axvline(mean_word_len, color='g', linestyle='--', label=f"Mean word amount: {mean_word_len:.2f}")
plt.legend()
plt.show()

nlp = English()
tokenizer = nlp.tokenizer

sns.histplot(articles_df["article"].map(lambda x: len(tokenizer(x))), kde=True)

plt.title("Amount of tokens in articles")
plt.xlabel("Amount of tokens")
plt.ylabel("Number of articles")
median_token_len = articles_df["article"].map(lambda x: len(tokenizer(x))).median()
mean_token_len = articles_df["article"].map(lambda x: len(tokenizer(x))).mean()
plt.axvline(median_token_len, color='r', linestyle='--', label=f"Median token amount: {median_token_len:.2f}")
plt.axvline(mean_token_len, color='g', linestyle='--', label=f"Mean token amount: {mean_token_len:.2f}")
plt.legend()
plt.show()

all_tokens = [token.text for article in articles_df["article"] for token in tokenizer(article)]
# remove non-alphabetic tokens such as punctuation
alpha_tokens = [token for token in all_tokens if token.isalpha()]
alpha_tokens = [token.lower() for token in alpha_tokens]
alpha_token_counts = Counter(alpha_tokens)

sns.barplot(
    x=[count for token, count in alpha_token_counts.most_common(20)],
    y=[token for token, count in alpha_token_counts.most_common(20)],
    hue=[token for token, count in alpha_token_counts.most_common(20)]
)

plt.title("Most common alphabetic tokens")
plt.xlabel("Count")
plt.ylabel("Token")
plt.show()

# remove stopwords such as 'the', 'a', 'and'
non_stop_tokens = [token for token in alpha_tokens if not nlp.vocab[token].is_stop]
non_stop_token_counts = Counter(non_stop_tokens)

sns.barplot(
    x=[count for token, count in non_stop_token_counts.most_common(20)],
    y=[token for token, count in non_stop_token_counts.most_common(20)],
    hue=[token for token, count in non_stop_token_counts.most_common(20)]
)

plt.title("Most common non-stopword tokens")
plt.xlabel("Count")
plt.ylabel("Token")
plt.show()

As one would expect in a dataset of cleantech news articles most of the tokens that are not punctation or stopwords revolve around the subjects of energy, climate, and technology. This is a good sign that the dataset is relevant to the topic at hand. The "s" token comes up frequently, which is likely due to the possessive form of words. With an average of around 700 words per article, we can expect a good amount of information to be present in each article and an average reading time of around 3-4 minutes.

Flesch Reading Ease Score¶

The Flesch Reading Ease Score is a tool used to evaluate how easy it is to understand a text based on the length of sentences and the number of syllables per word. Scores can range from -100 (very difficult to read) to 100 (very easy to read). This metric can be useful for assessing the readability of our articles and ensuring they are accessible to a broad audience.

articles_df["readability"] = articles_df["article"].apply(flesch_reading_ease)

sns.histplot(articles_df["readability"], kde=True)

plt.title("Flesch Reading Ease of articles")
plt.xlabel("Flesch Reading Ease")
plt.ylabel("Number of articles")
mean_readability = articles_df["readability"].mean()
plt.axvline(mean_readability, color='g', linestyle='--', label=f"Mean readability: {mean_readability:.2f}")
plt.legend()
plt.show()

domains = articles_df["domain"].unique()

# Setup the subplots based on the number of domains
plots_per_row = 3
num_rows = (len(domains) + 2) // plots_per_row
plot_height = 6
fig, axes = plt.subplots(num_rows, plots_per_row, figsize=(plot_height * plots_per_row, plot_height * num_rows))
axes = axes.flatten()  # Flatten the axes array for easier iteration

# Plot for each domain
for i, domain in enumerate(domains):
    domain_articles = articles_df[articles_df["domain"] == domain]
    sns.histplot(domain_articles["readability"], kde=True, ax=axes[i], bins=30)
    axes[i].set_title(f'Readability of {domain}')
    axes[i].set_xlabel('Flesch Reading Ease Score')
    axes[i].set_ylabel("Number of articles")
    mean_readability = domain_articles["readability"].mean()
    axes[i].axvline(mean_readability, color='g', linestyle='--', label=f"Mean readability: {mean_readability:.2f}")

# remove the empty plots
for j in range(i + 1, len(axes)):
    fig.delaxes(axes[j])

plt.tight_layout()
plt.show()

To gauge the readability of our articles, we calculated the Flesch-Kincaid Reading Ease Score. The average score of around 45 indicates a "fairly easy" reading level, which is positive news. This suggests the content is likely accessible to a broad audience and, consequently, understandable by our RAG pipeline as well.

Our analysis revealed a consistent average Flesch-Kincaid Reading Ease Score across most of the identified domains, with minor variations. This indicates a relatively consistent level of readability across different publishers within the dataset.

Finally we will save the cleaned dataset to a new file in the data/silver folder.

silver_folder = data_folder / "silver"
if not silver_folder.exists():
    silver_folder.mkdir()

articles_df.to_csv(silver_folder / "articles.csv", index=False)

Evaluation Questions¶

Next we will analyze the provided evaluation questions and ensure that they match the content of the articles.

human_eval_df.info()

<class 'pandas.core.frame.DataFrame'>
Index: 23 entries, 1 to 23
Data columns (total 4 columns):
 #   Column          Non-Null Count  Dtype
---  ------          --------------  -----
 0   question_id     23 non-null     int64
 1   question        23 non-null     object
 2   relevant_chunk  23 non-null     object
 3   article_url     23 non-null     object
dtypes: int64(1), object(3)
memory usage: 920.0+ bytes

human_eval_df.rename(columns={"relevant_chunk":"relevant_section","article_url": "url"}, inplace=True)
human_eval_df.drop(columns=["question_id"], inplace=True)
human_eval_df.head()

sns.histplot(human_eval_df["question"].map(len), kde=True)
plt.title("Question Character Length Distribution")
plt.xlabel("Character Length")
plt.ylabel("Count")
mean_char_len = human_eval_df["question"].map(len).mean()
plt.axvline(mean_char_len, color='r', linestyle='--', label=f"Mean character amount: {mean_char_len:.2f}")
plt.legend()
plt.show()

missing_articles = human_eval_df.copy()
missing_articles = missing_articles[~human_eval_df["url"].isin(articles_df["url"])]
missing_articles

Our exploration has identified instances where articles linked to specific questions appear to be missing from the dataset. To determine the root cause, let's investigate whether these articles are genuinely absent or if inconsistencies in URL formatting are creating the illusion of missing data. Normalizing the URLs across the dataset will help us differentiate between these two scenarios.

def normalize_url(url: str) -> str:
    url = url.replace("https://", "")
    url = url.replace("http://", "")
    url = url.replace("www.", "")
    url = url.rstrip("/")
    return url

articles_df["url"] = articles_df["url"].map(normalize_url)
human_eval_df["url"] = human_eval_df["url"].map(normalize_url)

missing_articles = human_eval_df.copy()
missing_articles = missing_articles[~human_eval_df["url"].isin(articles_df["url"])]
missing_articles

We also know from previous analysis that some duplicate articles from the "energyvoice" domain so we will also normalize these URLs.

missing_articles["url"] = missing_articles["url"].map(lambda x: x.replace("sgvoice.net", "sgvoice.energyvoice.com"))

missing_articles[~missing_articles["url"].isin(articles_df["url"])]

human_eval_df.loc[missing_articles.index, "url"] = missing_articles["url"]
human_eval_df[human_eval_df["url"].isin(articles_df["url"])]

In the end we are able to find all the articles that are linked to the evaluation questions and have therefore successfully completed our exploratory data analysis and preprocessing.

Subsampling¶

For faster processing and to reduce the cost of running the notebook we will subsample the dataset to 1000 articles. This will allow us to run the notebook in a reasonable amount of time and still provide meaningful results. Because the distribution of articles across publishers is skewed we will use stratified sampling to ensure that we have a representative sample. We also need to keep in mind that the evaluation questions are linked to specific articles so we need to make sure that these are included in the subsample.

eval_articles_df = articles_df[articles_df["url"].isin(human_eval_df["url"])]
eval_articles_df.head()

print(eval_articles_df["url"].unique().shape)
print(human_eval_df["url"].unique().shape)

(21,)
(21,)

def do_stratification(
        df: pd.DataFrame,
        column: str,
        sample_size: int,
        seed: int = 42
) -> pd.DataFrame:
    res_df = df.copy()
    indx = df.groupby(column, group_keys=False)[column].apply(lambda x: x.sample(n=int(sample_size/len(df) * len(x)), random_state=seed)).index.to_list()
    return res_df.loc[indx]

sample_df = do_stratification(articles_df, "domain", 1000, 69)
# if the articles are already in the subsample from the evaluation set, then we remove them, so we just want unique urls
sample_df = sample_df[~sample_df["url"].isin(eval_articles_df["url"])]
sample_df = pd.concat([sample_df, eval_articles_df])
sample_df.info()

<class 'pandas.core.frame.DataFrame'>
Index: 1011 entries, 38325 to 81779
Data columns (total 7 columns):
 #   Column       Non-Null Count  Dtype
---  ------       --------------  -----
 0   title        1011 non-null   object
 1   content      1011 non-null   object
 2   domain       1011 non-null   object
 3   url          1011 non-null   object
 4   article      1011 non-null   object
 5   lang         1011 non-null   object
 6   readability  1011 non-null   float64
dtypes: float64(1), object(6)
memory usage: 63.2+ KB

original_domain_counts = articles_df["domain"].value_counts().to_frame()
original_domain_counts = original_domain_counts / original_domain_counts.sum() * 100
domain_counts_df = original_domain_counts.copy()
domain_counts_df["type"] = "Original"


sample_domain_counts = sample_df["domain"].value_counts().to_frame()
sample_domain_counts = sample_domain_counts / sample_domain_counts.sum() * 100
sample_domain_counts["type"] = "Sample"

domain_counts_df = pd.concat([domain_counts_df, sample_domain_counts])
sns.barplot(
    x=domain_counts_df.index,
    y=domain_counts_df["count"],
    hue=domain_counts_df["type"]
)
plt.title("Domain Distribution")
plt.xlabel("Domain")
plt.ylabel("Percentage")
plt.xticks(rotation=90)
plt.show()

Chunking¶

Chunking is a crucial step in the RAG pipeline. It involves breaking down the articles into smaller, more manageable pieces.

There are mainly two reasons for this:

• Generation: The LLM has a limit on the number of tokens it can process at once. By chunking the articles, we can ensure that the LLM can generate responses without running into this limit. Another reason to use chunks for the generation step is to avoid "distractions" from irrelevant parts of the article. Just like if you were given a book and asked to answer a question about a the book it would be easier if you were just given the relevant chapter.
• Retrieval: Just like the LLM, the embedding model in the retrieval step has a limit on the number of tokens it can process at once. By chunking the articles, we can ensure that the embedding model can process the entire article. By chunking the articles, we can also improve the retrieval performance by having fine-grained chunks that can be matched more closely to the user query, rather then more general chunks.

Let's start by getting a better feeling for the most common size of chunks based on the number of characters

def get_lorem_text(num_chars: int) -> str:
    expected_avg_word_len = 3 # on the lower side to be safe
    text = lorem.words(num_chars // expected_avg_word_len)
    return text[:num_chars]

print(wrap_text(get_lorem_text(256)))

nihil rerum debitis fuga optio est modi sunt ratione tempore voluptatem reprehenderit cumque qui
quasi doloribus soluta accusamus similique id obcaecati sit incidunt molestiae eveniet quod
repudiandae laudantium libero voluptas autem harum natus quas volup

print(wrap_text(get_lorem_text(512)))

facere earum laborum amet distinctio nam ipsum quibusdam minus fuga molestiae quis perferendis sed
suscipit animi sequi aliquam nisi cumque nulla deserunt aut in quos sapiente corrupti dolorum enim
modi repellendus at assumenda voluptatibus pariatur quaerat temporibus magnam recusandae numquam
qui error nesciunt quae praesentium quia accusantium dicta nihil soluta voluptas quod excepturi est
deleniti dignissimos expedita exercitationem ut ipsa magni voluptates ratione iure ducimus
voluptatum eum dolores ven

print(wrap_text(get_lorem_text(1024)))

non rem officia beatae dolores consequuntur labore numquam sapiente ipsa nesciunt veniam quas nihil
fugiat hic nisi animi dolorem tempore eum tempora dolore accusantium amet incidunt consectetur
exercitationem id saepe accusamus eaque eligendi atque eveniet voluptates deserunt earum aut
delectus magni quae corporis dolorum laborum dicta totam vel dolor cumque fuga vero voluptatum
quibusdam nam quod temporibus neque aliquam architecto quidem eius suscipit soluta ex ab at cum
adipisci sunt nostrum placeat harum omnis sint nobis ducimus ut facere quia laudantium culpa
obcaecati sequi quo perspiciatis iusto odio minus libero mollitia nulla repellat aperiam eos enim
officiis in asperiores provident porro est et voluptatibus itaque aspernatur a repellendus
praesentium voluptas assumenda quasi qui voluptate autem quisquam velit odit reprehenderit ratione
sit alias natus tenetur repudiandae modi reiciendis nemo debitis laboriosam error recusandae minima
dignissimos molestias ea quis deleniti fugit explicabo ipsum rer

print(wrap_text(get_lorem_text(2048)))

facilis ea cum impedit nemo quo rerum facere temporibus excepturi exercitationem aut incidunt
provident quos dolore iure quae ipsam placeat similique autem voluptatibus voluptate at quasi eius
sapiente id culpa alias dicta nostrum optio quam aperiam officiis fugit repellat illum nam
voluptates velit minus atque doloribus nobis est tempora debitis sunt dolorum vero odio inventore
harum recusandae distinctio aliquam amet consectetur ullam nisi officia cupiditate suscipit
laboriosam nesciunt nulla minima quisquam hic natus tenetur sed non laudantium ab soluta vitae
explicabo vel quidem molestiae praesentium repudiandae sint reprehenderit dolor beatae ad fuga
expedita quod dolorem mollitia magnam labore omnis laborum odit voluptas earum aliquid et assumenda
perspiciatis saepe ratione corporis iusto totam neque cumque ipsa tempore modi molestias
perferendis animi voluptatem quia nihil maxime consequuntur doloremque accusamus iste magni error
veritatis a dignissimos necessitatibus eveniet dolores maiores unde illo libero quis consequatur
voluptatum veniam adipisci delectus pariatur obcaecati enim corrupti deserunt quas eligendi porro
itaque sequi sit reiciendis rem ducimus ipsum commodi accusantium aspernatur ut qui fugiat ex esse
in asperiores eos quaerat quibusdam blanditiis eaque deleniti possimus architecto numquam eum
repellendus quaerat vel veniam temporibus quam dicta blanditiis beatae qui ea non ut nulla quia hic
est vitae maiores magni eligendi nisi error neque fuga ad ducimus impedit aut amet dolor voluptas
explicabo adipisci dolore delectus eaque necessitatibus pariatur tempore consectetur consequuntur
culpa sequi similique perspiciatis fugiat quisquam nesciunt quis laborum dignissimos voluptates
possimus repellat ratione voluptatibus quidem facere in provident deleniti voluptatum rerum
quibusdam ex ipsa commodi distinctio accusamus dolorem tempora ullam ipsum perferendis deserunt
numquam corporis facilis unde voluptatem totam aliquid maxime excepturi mollitia officiis
asperiores iste laudantium atque odit d

Creating the Chunks¶

In this notebook we will be using two different chunking strategies:

• Recursive Chunking: This strategy involves recursively splitting the article into smaller chunks based on the article structure such as paragraphs and sentences until the chunk size is less than or equal to the maximum chunk size.
• Semantic Chunking: This strategy involves splitting the article into chunks based on semantic boundaries. This strategy finds boundaries between sentences that are semantically different and splits the article at these boundaries to create chunks. To do this we will need to use an embedding model to calculate the similarity between sentences. These embedding models will then also be used in the retrieval step to find the most relevant chunks.

To see how different texts get chunked with different strategies and chunk sizes check out the Chunking Visualizer.

def get_recursive_splitter(chunk_size: int, chunk_overlap: int) -> TextSplitter:
    return RecursiveCharacterTextSplitter(
        chunk_size=chunk_size,
        chunk_overlap=chunk_overlap,
        separators=["\n\n", "\n", "(?<=\. )", " ", ""],
        length_function=len,
    )

# the recursive splitter mainly relies on newlines, are there even any? No, so it will focus on sentences.
sample_df["article"].map(lambda x: x.count("\n")).sum()

0

# if we can make use of any device that is better than the CPU, we will use it
device = "cpu"
if torch.cuda.is_available():
    device = "cuda"
elif torch.backends.mps.is_available():
    device = "mps"

model_kwargs = {'device': device, "trust_remote_code": True}
model_kwargs

{'device': 'cuda', 'trust_remote_code': True}

embedding_models = {
    "mini": HuggingFaceEmbeddings(model_name="sentence-transformers/all-mpnet-base-v2", model_kwargs=model_kwargs),
    "bge-m3": HuggingFaceEmbeddings(model_name="BAAI/bge-m3", model_kwargs=model_kwargs),
    "gte": HuggingFaceEmbeddings(model_name="Alibaba-NLP/gte-base-en-v1.5", model_kwargs=model_kwargs),
}

recursive_256_splitter = get_recursive_splitter(256, 64)
recursive_1024_splitter = get_recursive_splitter(1024, 128)
semantic_splitter = SemanticChunker(
    embedding_models["mini"], breakpoint_threshold_type="percentile"
)
splitters = {
    "recursive_256": recursive_256_splitter,
    "recursive_1024": recursive_1024_splitter,
    "semantic": semantic_splitter
}

def chunk_documents(df: pd.DataFrame, text_splitter: TextSplitter):
    chunks = []
    id = 0
    for _, row in tqdm(df.iterrows(), total=len(df)):
        article_content = row['article']
        title = row['title']
        # we add the title to the content as it might be relevant to the question
        full_text = title + ": " + article_content
        char_chunks = text_splitter.split_text(full_text)
        for chunk in char_chunks:
                id += 1
                # add metadata to the chunk for potential later use
                metadata = {
                    'title': row['title'],
                    'url': row['url'],
                    'domain': row['domain'],
                    'id': id,
                }
                chunks.append(Document(
                    page_content=chunk,
                    metadata=metadata,
                ))
    return chunks

chunks_folder = silver_folder / "chunks"
if not chunks_folder.exists():
    chunks_folder.mkdir()

def get_or_create_chunks(df: pd.DataFrame, text_splitter: TextSplitter, splitter_name: str) -> List[Document]:
    chunks_file = chunks_folder / f"{splitter_name}_chunks.json"
    if chunks_file.exists():
        with open(chunks_file, "r") as file:
            chunks = [Document(**chunk) for chunk in json.load(file)]
        print(f"Loaded {len(chunks)} chunks from {chunks_file}")
    else:
        chunks = chunk_documents(df, text_splitter)
        with open(chunks_file, "w") as file:
            json.dump([doc.dict() for doc in chunks], file, indent=4)
        print(f"Saved {len(chunks)} chunks to {chunks_file}")
    return chunks

chunks = {}
for splitter_name, splitter in splitters.items():
    chunks[splitter_name] = get_or_create_chunks(sample_df, splitter, splitter_name)

Loaded 25399 chunks from data/silver/chunks/recursive_256_chunks.json
Loaded 5754 chunks from data/silver/chunks/recursive_1024_chunks.json
Loaded 3146 chunks from data/silver/chunks/semantic_chunks.json

Now that we have created and saved the chunks we can analyze them. We can already see above that the semantic chunks are generally larger than the recursive chunks.

Analyzing the Chunks¶

Let's start by looking at the first chunk of the first article to get a feeling for what the chunks look like depending on the chunking strategy and then we will look at the distribution of the chunk sizes and the number of chunks per article.

for splitter_name, splitter_chunks in chunks.items():
    print(f"{splitter_name} chunks:")
    print(wrap_text(splitter_chunks[0].page_content, char_per_line=150))
    print()

recursive_256 chunks:
Leclanché’ s new disruptive battery boosts energy density: Energy storage company Leclanché ( SW.LECN) has designed a new battery cell that uses less
cobalt and boosts energy density by 20%. The company says it is also produced in an environmentally

recursive_1024 chunks:
Leclanché’ s new disruptive battery boosts energy density: Energy storage company Leclanché ( SW.LECN) has designed a new battery cell that uses less
cobalt and boosts energy density by 20%. The company says it is also produced in an environmentally friendly way, making it more recyclable or easy
to dispose of at end-of-life. Leclanché said it has developed an environmentally friendly way to produce lithium-ion ( Li-ion) batteries. It has
replaced highly toxic organic solvents, commonly used in the production process, with a water-based process to make nickel-manganese-cobalt-aluminium
cathodes ( NMCA). Organic solvents, such as N-methyl pyrrolidone ( NMP), are highly toxic and harmful to the environment. The use of NMP has been
restricted by the European Commission, having been added to the list of Substances of Very High Concern, which can have serious irreversible effects
on human health and the environment. Besides being technically simpler, eliminating the use of organic solvents also eliminates the risk

semantic chunks:
Leclanché’ s new disruptive battery boosts energy density: Energy storage company Leclanché ( SW.LECN) has designed a new battery cell that uses less
cobalt and boosts energy density by 20%. The company says it is also produced in an environmentally friendly way, making it more recyclable or easy
to dispose of at end-of-life. Leclanché said it has developed an environmentally friendly way to produce lithium-ion ( Li-ion) batteries. It has
replaced highly toxic organic solvents, commonly used in the production process, with a water-based process to make nickel-manganese-cobalt-aluminium
cathodes ( NMCA). Organic solvents, such as N-methyl pyrrolidone ( NMP), are highly toxic and harmful to the environment. The use of NMP has been
restricted by the European Commission, having been added to the list of Substances of Very High Concern, which can have serious irreversible effects
on human health and the environment. Besides being technically simpler, eliminating the use of organic solvents also eliminates the risk of
explosion, making the production process safer for employees. Leclanché claims to be a global pioneer in the field, having used aqueous binders in
its for over a decade.

def plot_chunk_lengths(chunks: List[Document], title: str):
    sns.histplot([len(chunk.page_content) for chunk in chunks], kde=True)
    plt.title(title)
    plt.xlabel("Chunk length")
    plt.ylabel("Number of chunks")
    median_chunk_len = np.median([len(chunk.page_content) for chunk in chunks])
    mean_chunk_len = np.mean([len(chunk.page_content) for chunk in chunks])
    plt.axvline(median_chunk_len, color='r', linestyle='--', label=f"Median chunk length: {median_chunk_len:.2f}")
    plt.axvline(mean_chunk_len, color='g', linestyle='--', label=f"Mean chunk length: {mean_chunk_len:.2f}")
    plt.legend()
    plt.show()

plot_chunk_lengths(chunks["recursive_256"], "Chunk lengths for recursive 256 splitter")

plot_chunk_lengths(chunks["recursive_1024"], "Chunk lengths for recursive 1024 splitter")

plot_chunk_lengths(chunks["semantic"], "Chunk lengths for semantic splitter")

chunks_per_article = {splitter_name: Counter([chunk.metadata["title"] for chunk in chunks]) for splitter_name, chunks in chunks.items()}
counts = {splitter_name: [count for title, count in chunk_counts.items()] for splitter_name, chunk_counts in chunks_per_article.items()}

sns.histplot(counts, kde=True)
plt.title("Number of chunks per article")
plt.xlabel("Number of chunks")
plt.ylabel("Number of articles")
plt.legend(chunks_per_article.keys())
plt.show()

From our analysis of our created chunks we can see that the recursive chunks are all around the same size, close to the defined maximum. On the other hand, the semantic chunks vary in size. This is because the semantic chunking strategy is based on the semantic boundaries of the article.

We can also see that despite the semantic chunks being larger, the distribution of the number of chunks per article is much wider for the recursive chunks. This is because the recursive chunks are all around the same size, while the semantic chunks have many smaller ones and a few larger ones.

Generating Embeddings¶

Now that we have clean chunks, the next step involves generating embeddings for our article chunks. These embeddings will serve as a crucial component for efficient retrieval within the RAG pipeline. For our vector store we'll utilize ChromaDB, a powerful tool for indexing and searching high-dimensional data. To integrate our chosen embedding models with ChromaDB, we'll define a custom wrapper class. This wrapper class will act as an intermediary, ensuring seamless communication between the models and the ChromaDB indexing system.

class CustomChromadbEmbeddingFunction(EmbeddingFunction):

    def __init__(self, model) -> None:
        super().__init__()
        self.model = model

    def _embed(self, l):
        return [self.model.embed_query(x) for x in l]

    def embed_query(self, query):
        return self._embed([query])

    def __call__(self, input: Documents) -> Embeddings:
        embeddings = self._embed(input)
        return embeddings

chroma_embedding_functions = {
    "mini": CustomChromadbEmbeddingFunction(embedding_models["mini"]),
    "bge-m3": CustomChromadbEmbeddingFunction(embedding_models["bge-m3"]),
    "gte": CustomChromadbEmbeddingFunction(embedding_models["gte"]),
}
for name, embedding_function in chroma_embedding_functions.items():
    sample = embedding_function(["Hello, world!"])[0][:5]
    print(f"{name} embedding sample: {sample}")

mini embedding sample: [0.034922659397125244, 0.01883005164563656, -0.017854738980531693, 0.00013884028885513544, 0.0740736573934555]
bge-m3 embedding sample: [-0.016155630350112915, 0.02699342556297779, -0.04258322715759277, 0.013542207889258862, -0.019354630261659622]
gte embedding sample: [0.03789481893181801, 0.3469243049621582, -0.2047133892774582, -0.21238623559474945, -0.49100759625434875]

Generating embeddings can be a computationally intensive process. To optimize efficiency and avoid redundant computations, we'll leverage checkpointing. This technique involves storing the generated embeddings along with their corresponding article chunks. We'll define a simple class to encapsulate this data, facilitating efficient retrieval and reducing the need for recalculating embeddings unless absolutely necessary.

embeddings_folder = silver_folder / "embeddings"
if not embeddings_folder.exists():
    embeddings_folder.mkdir()

class DocumentEmbedding():
    def __init__(self, document: Document, text_embedding: List[float]) -> None:
        self.document = document
        self.text_embedding = text_embedding

    def to_dict(self) -> Dict:
        return {
            "document": self.document.dict(),
            "text_embedding": self.text_embedding
        }

    @classmethod
    def from_dict(cls, d: Dict) -> "DocumentEmbedding":
        return cls(
            document=Document(**d["document"]),
            text_embedding=d["text_embedding"]
        )


def get_or_create_embeddings(
        embedding_function: EmbeddingFunction,
        chunks: List[Document],
        embedding_name: str,
) -> List[DocumentEmbedding]:
    embeddings_file = embeddings_folder / f"{embedding_name}_embeddings.json"
    if embeddings_file.exists():
        with open(embeddings_file, "r") as file:
            embeddings = [DocumentEmbedding.from_dict(embedding) for embedding in json.load(file)]
        print(f"Loaded {len(embeddings)} embeddings from {embeddings_file}")
    else:
        embeddings = []
        for chunk in tqdm(chunks):
            text_embedding = embedding_function([chunk.page_content])[0]
            embedding = DocumentEmbedding(
                document=chunk,
                text_embedding=text_embedding
            )
            embeddings.append(embedding)
        with open(embeddings_file, "w") as file:
            json.dump([embedding.to_dict() for embedding in embeddings], file, indent=4)
        print(f"Saved {len(embeddings)} embeddings to {embeddings_file}")
    return embeddings

embeddings = {}
for embedding_name, embedding_function in chroma_embedding_functions.items():
    for splitter_name, splitter_chunks in chunks.items():
        embeddings[f"{embedding_name}_{splitter_name}"] = get_or_create_embeddings(
            embedding_function, splitter_chunks, f"{embedding_name}_{splitter_name}"
        )

Loaded 25399 embeddings from data/silver/embeddings/mini_recursive_256_embeddings.json
Loaded 5754 embeddings from data/silver/embeddings/mini_recursive_1024_embeddings.json
Loaded 3146 embeddings from data/silver/embeddings/mini_semantic_embeddings.json
Loaded 25399 embeddings from data/silver/embeddings/bge-m3_recursive_256_embeddings.json
Loaded 5754 embeddings from data/silver/embeddings/bge-m3_recursive_1024_embeddings.json
Loaded 3146 embeddings from data/silver/embeddings/bge-m3_semantic_embeddings.json
Loaded 25399 embeddings from data/silver/embeddings/gte_recursive_256_embeddings.json
Loaded 5754 embeddings from data/silver/embeddings/gte_recursive_1024_embeddings.json
Loaded 3146 embeddings from data/silver/embeddings/gte_semantic_embeddings.json

Storing the Embeddings in ChromaDB¶

As mentioned above for our semantic search retrieval we will be storing the embeddings in ChromaDB. ChromaDB is a powerful tool for indexing and searching high-dimensional data. It is based on the Hierarchical Navigable Small World (HNSW) algorithm, which is known for its efficiency in searching high-dimensional spaces.

Just like with normal sql databases we have a server, in this case an sqllite server, that we can connect to with a client. We will then use the client to connect to the server and create for each set of embeddings a new seperate database which can be thought of as the index or a vector space. Chromadb calls these vector spaces "collections". These collections will then be used to search for the most relevant chunks to a user query.

gold_folder = data_folder / "gold"
if not gold_folder.exists():
    gold_folder.mkdir()
chromadb_folder = gold_folder / "chromadb"
if not chromadb_folder.exists():
    chromadb_folder.mkdir()

chroma_client = chromadb.PersistentClient(path=chromadb_folder.as_posix())

def get_or_create_collection(
        name: str,
        embedding_function: EmbeddingFunction,
        embeddings: List[DocumentEmbedding],
        batch_size: int = 128
) -> Collection:

    collection = chroma_client.get_or_create_collection(
        name=name,
        # configure to use cosine distance not default L2
        metadata={"hnsw:space": "cosine"},
        embedding_function=embedding_function
    )

    if collection.count() == 0:
        for i in tqdm(range(0, len(embeddings), batch_size)):
            batch = embeddings[i:i+batch_size]
            collection.add(
                documents=[embedding.document.page_content for embedding in batch],
                embeddings=[embedding.text_embedding for embedding in batch],
                ids=[str(embedding.document.metadata["id"]) for embedding in batch],
                metadatas=[embedding.document.metadata for embedding in batch]
            )

    return collection

collections = {}
for collection_name, current_embeddings in embeddings.items():
    collection = get_or_create_collection(
        collection_name,
        chroma_embedding_functions[collection_name.split("_")[0]],
        current_embeddings
    )
    collections[collection_name] = collection
    print(f"Collection {collection_name} has {collection.count()} documents")

Collection mini_recursive_256 has 25399 documents
Collection mini_recursive_1024 has 5754 documents
Collection mini_semantic has 3146 documents
Collection bge-m3_recursive_256 has 25399 documents
Collection bge-m3_recursive_1024 has 5754 documents
Collection bge-m3_semantic has 3146 documents
Collection gte_recursive_256 has 25399 documents
Collection gte_recursive_1024 has 5754 documents
Collection gte_semantic has 3146 documents

Once we have stored all the embeddings in ChromaDB we can test the retrieval process by querying one of our collections and see what the most similar chunks are. Try some different queries and see what the most similar chunks are and whether they make sense.

selected_collection = collections["gte_recursive_1024"]
results = selected_collection.query(
    query_texts=["Climate Change"],
    n_results=3,
)
for doc in results["documents"][0]:
    print(wrap_text(doc))
    print()

Report of the Intergovernmental Panel on Climate Change ( IPCC) makes for grim reading. It warns
that the world is heading for calamitous temperature rises and points to the need for economies to
decarbonise. The UK has set firm and ambitious targets and a pathway to net zero and CCUS will be
one of the tools which is used to achieve this.

scenario used in the study is unlikely because of global efforts to limit greenhouse gas emissions,
the findings reveal a previously unknown tipping point that if activated would release an important
brake on global warming, the authors said. `` We need to think about these worst-case scenarios to
understand how our CO2 emissions might affect the oceans not just this century, but next century
and the following century, '' said Megumi Chikamoto, who led the research as a research fellow at
the University of Texas Institute for Geophysics. The study was published in the journal
Geophysical Research Letters. Today, the oceans soak up about a third of the CO2 emissions
generated by humans. Climate simulations had previously shown that the oceans slow their absorption
of CO2 over time, but none had considered alkalinity as explanation. To reach their conclusion, the
researchers recalculated pieces of a 450-year simulation until they hit on alkalinity as a key
cause of the slowing. According to the findings, the

Potential Climatic Impact of Nord Stream Methane Leaks:  Nord Stream 1 and 2, two subsea pipelines
that transport natural gas from Russia to Germany, were both intentionally destroyed on September
26th, 2022. Enormous amounts of gases, mainly methane, were discharged into the ocean and
eventually into the atmosphere. Methane escaping from sabotaged pipelines in the Baltic Sea (
September 27th, 2022). Image Credit: Danish Armed Forces Methane is the second most prevalent
anthropogenic greenhouse gas after CO2, although its greenhouse effect is substantially stronger.
As a result, whether this catastrophe may have detrimental climatic consequences is a major issue
around the world. This problem was discussed in a news article published in Nature, but no
quantitative implications were reached. Recently, scientists from the Chinese Academy of Sciences’
Institute of Atmospheric Physics approximated the potential climatic effect of leaked methane using
the energy-conservation framework of the Intergovernmental

Analyzing the Embedding Space¶

To gain a better understandign of how the retrieval process works we will analyze the embedding space. We will start by projecting the embeddings into a 2D space using UMAP. UMAP is a dimensionality reduction technique that is particularly well-suited for visualizing high-dimensional data in a lower-dimensional space. We will then use the UMAP embeddings to create a scatter plot of the chunks.

def get_vectors_from_collection(collection: Collection):
    stored_chunks = collection.get(include=["documents", "metadatas", "embeddings"])
    return np.array(stored_chunks["embeddings"])

def get_vectors_by_domain(collection: Collection, domain: str):
    stored_chunks = collection.get(include=["documents", "metadatas", "embeddings"])
    metadatas = stored_chunks["metadatas"]
    indices = [str(metadata["id"]) for metadata in metadatas if metadata["domain"] == domain]
    return collection.get(include=["embeddings"], ids=indices)["embeddings"]

def fit_umap(vectors: np.ndarray):
    return umap.UMAP().fit(vectors)

def project_embeddings(embeddings, umap_transform):
    return umap_transform.transform(embeddings)

vectors = get_vectors_from_collection(selected_collection)
print(f"Original shape: {vectors.shape}")
umap_transform = fit_umap(vectors)
vectors_projections = project_embeddings(vectors, umap_transform)
print(f"Projected shape: {vectors_projections.shape}")

Original shape: (5754, 768)
Projected shape: (5754, 2)

You can zoom in the plot by clicking and dragging a box around the area you want to zoom in on. You can also reset the plot by double clicking on the plot.

fig = px.scatter(x=vectors_projections[:, 0], y=vectors_projections[:, 1])
fig.show()

Next we will color the embeddings by the domain of the article to see if there are any patterns or clusters in the embedding space based on the domain.

fig = go.Figure()
for domain in sample_df["domain"].unique():
    domain_vectors = get_vectors_by_domain(selected_collection, domain)
    domain_projections = project_embeddings(domain_vectors, umap_transform)
    fig.add_trace(go.Scatter(x=domain_projections[:, 0], y=domain_projections[:, 1], mode='markers', marker=dict(size=4), name=domain))

fig.show()

We can also visualize the retrieval process by plotting the query and the most similar chunks in the embedding space. This will give us a better understanding of how the retrieval process works and how the most similar chunks are found. Don't forget that the embeddings are in a high-dimensional space and we are only visualizing a 2D projection of them so the distances between the points might not be accurate. Try some different queries and see how the most similar chunks are found.

def plot_retrieval_results(
        query: str,
        selected_collection: Collection,
        n_results: int = 5
):
    vectors = get_vectors_from_collection(selected_collection)
    umap_transform = fit_umap(vectors)
    vectors_projections = project_embeddings(vectors, umap_transform)

    query_embedding = selected_collection._embedding_function([query])[0]
    query_embedding = np.array(query_embedding).reshape(1, -1)
    query_projection = project_embeddings(query_embedding, umap_transform)

    nearest_neighbors = selected_collection.query(
        query_texts=[query],
        n_results=n_results,
    )
    neighbor_vectors = selected_collection.get(include=["embeddings"], ids=nearest_neighbors["ids"][0])["embeddings"]
    neighbor_projections = project_embeddings(neighbor_vectors, umap_transform)


    fig = go.Figure()

    fig.add_trace(go.Scatter(x=vectors_projections[:, 0], y=vectors_projections[:, 1], mode='markers', marker=dict(size=5), name="other vectors"))
    fig.add_trace(go.Scatter(x=neighbor_projections[:, 0], y=neighbor_projections[:, 1], mode='markers', marker=dict(size=5, color='orange'), name="nearest neighbors"))
    fig.add_trace(go.Scatter(x=query_projection[:, 0], y=query_projection[:, 1], mode='markers', marker=dict(size=10, color='red', symbol='x'), name="query"))

    fig.show()

plot_retrieval_results(
    "Climate Change",
    selected_collection,
)

Lastly we will analyze the distribution of the cosine distances between the query and the different chunks. This will give us a better understanding of the cosine distance and show that the distances in the high-dimensional space are not the same as in the 2D projection. Do not confuse the cosine distance with the cosine similarity. The cosine similarity is the cosine of the angle between two vectors and the cosine distance is 1 minus the cosine similarity so that smaller numbers mean the vectors are more similar.

def cosine_distance(vector1, vector2):
    dot_product = np.dot(vector1, vector2.T)
    norm_product = np.linalg.norm(vector1) * np.linalg.norm(vector2)
    similarity = dot_product / norm_product
    return 1 - similarity

def plot_cosine_distances(
        query: str,
        selected_collection: Collection
):
    vectors = get_vectors_from_collection(selected_collection)
    umap_transform = fit_umap(vectors)
    vectors_projections = project_embeddings(vectors, umap_transform)

    query_embedding = selected_collection._embedding_function([query])[0]
    query_embedding = np.array(query_embedding).reshape(1, -1)
    query_projection = project_embeddings(query_embedding, umap_transform)

    similarities = np.array([cosine_distance(query_embedding, vector) for vector in vectors])

    fig = go.Figure()
    fig.add_trace(go.Scatter(
        x=vectors_projections[:, 0],
        y=vectors_projections[:, 1],
        mode='markers',
        marker=dict(
            size=5,
            color=similarities.flatten(),
            colorscale='RdBu',
            colorbar=dict(title='Cosine Distance')
        ),
        text=['Cosine Distance: {:.4f}'.format(
            sim) for sim in similarities.flatten()],
        name='Other Vectors'
    ))

    fig.add_trace(go.Scatter(x=[query_projection[0][0]], y=[
                query_projection[0][1]], mode='markers', marker=dict(size=10, color='black', symbol='x'), text=['Query Vector'], name='Query Vector'))

    fig.show()

plot_cosine_distances(
    "Climate Change",
    selected_collection,
)

Putting it all Together¶

Now that we have generated the embeddings and stored them in ChromaDB we can put it all together and create the RAG pipeline. The RAG pipeline consists of the following steps:

• Indexing: The first step is the preperation we have already done. We have chunked the articles and generated embeddings for the chunks and stored them in ChromaDB, our vector store/index.
• Retrieval: The next step in the RAG pipeline is to retrieve the most relevant chunks to the user query. This is done by querying the ChromaDB index with the user query and retrieving the most similar chunks.
• Generation: The next step is to generate a response to the user query. This is done by feeding the retrieved chunks and the user query to the LLM and generating a response.

How does Langchain work?¶

In this notebook we will be using Langchain to build up our pipeline. You do not need a library like Langchain or LlamaIndex to build a RAG pipeline, but it can make the process easier.

The idea of Langchain and its LCEL (Langchain Expression Language) is very simple. Within the pipeline there are lots of steps that take an input and produce an output. These steps can be chained together to form a pipeline. The LCEL is a simple language that allows you to define these steps and how they are connected. For more technical details on how Langchain works check out the Langchain Documentation.

In simple terms langchain provides an abstraction of a step that has an invoke method that takes an input, a dictionary of parameters and returns an output also a dictionary. This allows you to chain together different steps and define how they are connected and also split of chains of steps into separate pipelines.

Below you can see an overview of our RAG pipeline:

def create_qa_chain(retriever: BaseRetriever):
    template = """You are an assistant for question-answering tasks. Use the following pieces of retrieved context to answer the question. \
    If you don't know the answer, just say that you don't know. Keep the answer concise.

    Question: {question}
    Context: {context}
    Answer:
    """
    rag_prompt = ChatPromptTemplate.from_template(template)

    def format_docs(docs):
        return "\n\n".join(doc.page_content for doc in docs)

    rag_chain = RunnableParallel(
        {
            "context": retriever,
            "question": RunnablePassthrough()
        }
    ).assign(answer=(
         RunnablePassthrough.assign(context=(lambda x: format_docs(x["context"])))
            | rag_prompt
            | llm
            | StrOutputParser()
    ))

    return rag_chain

For Langchain to work with our chromadb collections we need to transform the collections into a format that Langchain can work with so called stores and retrievers.

def collection_to_store(collection_name: str, lc_embedding_model: EmbeddingFunction):
    return Chroma(
        client=chroma_client,
        collection_name=collection_name,
        embedding_function=lc_embedding_model,
    )

def store_to_retriever(store: VectorStore, k: int = 3):
    retriever = store.as_retriever(
        search_type="similarity", search_kwargs={'k': k}
    )
    return retriever

selected_store = collection_to_store("gte_recursive_1024", embedding_models["gte"])
selected_retriever = store_to_retriever(selected_store)
selected_retriever.invoke("Climate Change")

[Document(page_content='Report of the Intergovernmental Panel on Climate Change ( IPCC) makes for grim reading. It warns that the world is heading for calamitous temperature rises and points to the need for economies to decarbonise. The UK has set firm and ambitious targets and a pathway to net zero and CCUS will be one of the tools which is used to achieve this.', metadata={'domain': 'energyvoice', 'id': 3173, 'title': 'The 10 Point Pod delves deep into the heart of CCUS', 'url': 'energyvoice.com/promoted/347021/the-10-point-pod-delves-deep-into-the-heart-of-ccus'}),
 Document(page_content="scenario used in the study is unlikely because of global efforts to limit greenhouse gas emissions, the findings reveal a previously unknown tipping point that if activated would release an important brake on global warming, the authors said. `` We need to think about these worst-case scenarios to understand how our CO2 emissions might affect the oceans not just this century, but next century and the following century, '' said Megumi Chikamoto, who led the research as a research fellow at the University of Texas Institute for Geophysics. The study was published in the journal Geophysical Research Letters. Today, the oceans soak up about a third of the CO2 emissions generated by humans. Climate simulations had previously shown that the oceans slow their absorption of CO2 over time, but none had considered alkalinity as explanation. To reach their conclusion, the researchers recalculated pieces of a 450-year simulation until they hit on alkalinity as a key cause of the slowing. According to the findings, the", metadata={'domain': 'azocleantech', 'id': 633, 'title': 'Global Warming Could Trigger Chemical Changes in the Ocean Surface that Accelerate Climate Change', 'url': 'azocleantech.com/news.aspx?newsID=33053'}),
 Document(page_content='Potential Climatic Impact of Nord Stream Methane Leaks:  Nord Stream 1 and 2, two subsea pipelines that transport natural gas from Russia to Germany, were both intentionally destroyed on September 26th, 2022. Enormous amounts of gases, mainly methane, were discharged into the ocean and eventually into the atmosphere. Methane escaping from sabotaged pipelines in the Baltic Sea ( September 27th, 2022). Image Credit: Danish Armed Forces Methane is the second most prevalent anthropogenic greenhouse gas after CO2, although its greenhouse effect is substantially stronger. As a result, whether this catastrophe may have detrimental climatic consequences is a major issue around the world. This problem was discussed in a news article published in Nature, but no quantitative implications were reached. Recently, scientists from the Chinese Academy of Sciences’ Institute of Atmospheric Physics approximated the potential climatic effect of leaked methane using the energy-conservation framework of the Intergovernmental', metadata={'domain': 'azocleantech', 'id': 614, 'title': 'Potential Climatic Impact of Nord Stream Methane Leaks', 'url': 'azocleantech.com/news.aspx?newsID=32568'})]

Now that we have our retriever we can create our RAG pipeline. Try some different queries and see how the pipeline responds.

selected_chain = create_qa_chain(selected_retriever)
selected_chain.invoke("Where are the biggest increases in wildfire smoke exposure in recent years?")

{'context': [Document(page_content='Blue River, Vida, Phoenix, and Talent—were lost to the so-called Labor Day Fires in 2020. And in 2021, the Lytton Creek Fire wiped out the village of Lytton, British Columbia, destroying hundreds of homes. All told, between 2017 and 2021, nearly 120,000 fires burned across western North America, burning nearly 39 million acres of land and claiming more than 60,000 structures. The impacts of wildfires reach well beyond the people, communities, and ecosystems that are directly affected by flames. Wildfires have consequences for public health, water supplies, and economies long after a fire is extinguished. Mounting research is showing exposure to the fine particulate matter in wildfire smoke is responsible for thousands of indirect deaths, increases to the risk of pre-term birth among pregnant women, and even an increase in the risk of COVID-19 illness and death. Surprisingly, some of the biggest increases in wildfire smoke exposure in recent years are in the Great Plains region, from North Dakota to Texas. In', metadata={'domain': 'cleantechnica', 'id': 57, 'title': 'What Does A “ Normal ” Year Of Wildfires Look Like In a Changing Climate?', 'url': 'cleantechnica.com/2023/05/15/what-does-a-normal-year-of-wildfires-look-like-in-a-changing-climate'}),
  Document(page_content='the biggest increases in wildfire smoke exposure in recent years are in the Great Plains region, from North Dakota to Texas. In addition to their impact on air quality, wildfires can disrupt processes that maintain access to drinking water, including by reducing the ability of soil to absorb water when it rains and sending additional sediment into drinking water systems. The science is clear that climate change is increasing what’ s known as the “ vapor pressure deficit, ” or VPD, across western North America. When VPD is high, the atmosphere can pull more water out of plants, which dries them out and makes them more likely to burn. VPD also is also a good metric for drought, including the long 21st century drought the region has been experiencing. But climate isn’ t the only factor behind the west’ s worsening wildfires. More than a century of aggressive fire suppression and an even longer period of settler colonial repression of Indigenous burning practices have led to forests that are too dense, too', metadata={'domain': 'cleantechnica', 'id': 58, 'title': 'What Does A “ Normal ” Year Of Wildfires Look Like In a Changing Climate?', 'url': 'cleantechnica.com/2023/05/15/what-does-a-normal-year-of-wildfires-look-like-in-a-changing-climate'}),
  Document(page_content='even longer period of settler colonial repression of Indigenous burning practices have led to forests that are too dense, too uniform in their species, and without the resistance to fire they once had. Moreover, a lack of affordable housing across the region and the desire for proximity to beautiful, natural places has led to large increases in the number of people living in wildfire-prone areas. Recent research has found that human activities were responsible for starting more than 80% of all wildfires in the United States, while also increasing the length of the fire season. This year’ s wildfire season may offer the western US a chance to catch its breath after several years of record-breaking fires. But with climate change expected to deepen the hot, dry conditions that enable such record-breaking fires, we must be preparing for a future with even more fire. Carly Phillips contributed to this post. We publish a number of guest posts from experts in a large variety of fields. This is our contributor', metadata={'domain': 'cleantechnica', 'id': 59, 'title': 'What Does A “ Normal ” Year Of Wildfires Look Like In a Changing Climate?', 'url': 'cleantechnica.com/2023/05/15/what-does-a-normal-year-of-wildfires-look-like-in-a-changing-climate'})],
 'question': 'Where are the biggest increases in wildfire smoke exposure in recent years?',
 'answer': 'The biggest increases in wildfire smoke exposure in recent years are in the Great Plains region, from North Dakota to Texas.'}

chains = {}
for collection_name, collection in collections.items():
    store = collection_to_store(collection_name, embedding_models[collection_name.split("_")[0]])
    retriever = store_to_retriever(store)
    chain = create_qa_chain(retriever)
    chains[collection_name] = chain

chains.keys()

dict_keys(['mini_recursive_256', 'mini_recursive_1024', 'mini_semantic', 'bge-m3_recursive_256', 'bge-m3_recursive_1024', 'bge-m3_semantic', 'gte_recursive_256', 'gte_recursive_1024', 'gte_semantic'])

Evaluation¶

Because we have many hyperparameters such as chunk size, prompts etc. to tune and different strategies to try we will use the RAGAS (RAG Assesment) framework to evaluate our pipeline. RAGAS is a framework that allows you to evaluate your RAG pipeline with an LLM as a judge and other metrics that also utilize embedding models. We will go more into detail on the metrics later on.

Before we can start the evaluation we need to define the evaluation questions and their ground truth answers. For this we will use the provided evaluation questions. To increase our question pool we will also generate some additional question and answer pairs based on a random chunk and utilizing the LLM to generate the question and answer.

human_eval_df.head()

def generate_eval_answers(df: pd.DataFrame) -> pd.DataFrame:
    answer_geneation_prompt = """Answer the following question based on the article:
    Question: {question}
    Article: {article}
    """
    answer_generation_chain = ChatPromptTemplate.from_template(answer_geneation_prompt) | llm
    for i, row in tqdm(df.iterrows(), total=len(df)):
        df.at[i, "ground_truth"] = answer_generation_chain.invoke({"question": row["question"], "article": row["relevant_section"]}).content
    return df

if (silver_folder / "human_eval.csv").exists():
    human_eval_df = pd.read_csv(silver_folder / "human_eval.csv")
else:
    human_eval_df = generate_eval_answers(human_eval_df)
    human_eval_df.to_csv(silver_folder / "human_eval.csv", index=False)

human_eval_df.head()

def generate_synthetic_qa_pairs(documents: List[Document], n: int = 10) -> List[str]:
    synthetic_questions = []
    documents = np.random.choice(documents, n)

    question_generation_prompt = """Generate a short and general question based on the following news article:
    Article: {article}
    """
    question_generation_chain = ChatPromptTemplate.from_template(question_generation_prompt) | llm

    answer_geneation_prompt = """Answer the following question based on the article:
    Question: {question}
    Article: {article}
    """
    answer_generation_chain = ChatPromptTemplate.from_template(answer_geneation_prompt) | llm


    for document in tqdm(documents):
        element = {}
        content = document.page_content
        element["relevant_section"] = content
        element["url"] = document.metadata["url"]
        question = question_generation_chain.invoke({"article": content}).content
        element["question"] = question
        answer = answer_generation_chain.invoke({"question": question, "article": content}).content
        element["ground_truth"] = answer
        synthetic_questions.append(element)

    return pd.DataFrame(synthetic_questions)

if not (silver_folder / "synthetic_eval.csv").exists():
    synthetic_eval_df = generate_synthetic_qa_pairs(chunks["recursive_1024"], 25)
    synthetic_eval_df.to_csv(silver_folder / "synthetic_eval.csv", index=False)
else:
    synthetic_eval_df = pd.read_csv(silver_folder / "synthetic_eval.csv", index_col=0)
synthetic_eval_df.head()

question_length = {
    "human": human_eval_df["question"].map(len),
    "synthetic": synthetic_eval_df["question"].map(len)
}

sns.histplot(question_length, kde=True)
plt.title("Question Length Distribution")
plt.xlabel("Question Length")
plt.ylabel("Count")
plt.show()

eval_df = pd.concat([human_eval_df, synthetic_eval_df], ignore_index=True)
eval_df["is_synthetic"] = eval_df["relevant_section"].isna()
eval_df["is_synthetic"].value_counts()

is_synthetic
True     25
False    23
Name: count, dtype: int64

Now we have doubled the number of questions and answers. However, we can see that our synthetic questions are slightly longer than the provided questions which could mean that they are slightly easier to answer. This potential bias should be taken into account when evaluating the pipeline.

RAGAS Metrics¶

RAGAS provides a variety of metrics to evaluate the performance of a RAG pipeline. Here are some of the key metrics we will be using and how they are calculated:

• Answer Relevancy: This metric measures the relevance of the generated answer to the user query. The Answer Relevancy is defined as the mean cosine similartiy of the original question to a number of artifical questions, which where generated (reverse engineered) based on the answer.
• Answer Correctness: This metric measures the correctness of the generated answer. Answer correctness encompasses two critical aspects: semantic similarity between the generated answer and the ground truth, as well as factual similarity. These aspects are combined using a weighted scheme to formulate the answer correctness score.
• Faithfulness: This metric measures how well the generated answer is faithful to the retrieved chunks. The generated answer is regarded as faithful if all the claims that are made in the answer can be inferred from the given context. To calculate this a set of claims from the generated answer is first identified. Then each one of these claims are cross checked with given context to determine if it can be inferred from given context or not.
• Context Relevancy: This metric measures the relevance of the retrieved chunks to the user query. Ideally, the retrieved context should exclusively contain essential information to address the provided query. To compute this, we initially estimate the number of sentences within the retrieved context that are relevant for answering the given question and devide it by the total number of sentences in the retrieved context.

For this to work we create a test dataset for each of our RAG pipelines that contains the evaluation questions and their ground truth answers. We then run all the questions through our RAG pipeline and store the generated answers and the retrieved chunks. We can then use this test dataset to calculate the RAGAS metrics.

datasets_folder = gold_folder / "datasets"
if not datasets_folder.exists():
    datasets_folder.mkdir()

def get_or_create_eval_dataset(name: str, df: pd.DataFrame, chain: Chain) -> Dataset:
    dataset_file = datasets_folder/ f"{name}_dataset.json"
    if dataset_file.exists():
        with open(dataset_file, "r") as file:
            dataset = Dataset.from_dict(json.load(file))
        print(f"Loaded {name} dataset from {dataset_file}")
    else:
        datapoints = {
            "question": df["question"].tolist(),
            "answer": [],
            "contexts": [],
            "ground_truth": df["ground_truth"].tolist(),
            "context_urls": []
        }
        for question in tqdm(datapoints["question"]):
            result = chain.invoke(question)
            datapoints["answer"].append(result["answer"])
            datapoints["contexts"].append([str(doc.page_content) for doc in result["context"]])
            datapoints["context_urls"].append([doc.metadata["url"] for doc in result["context"]])
        dataset = Dataset.from_dict(datapoints)
        with open(dataset_file, "w") as file:
            json.dump(dataset.to_dict(), file)
        print(f"Saved {name} dataset to {dataset_file}")
    return dataset

results_folder = gold_folder / "results"
if not results_folder.exists():
    results_folder.mkdir()

def get_or_run_llm_eval(name: str, dataset: Dataset, llm_judge_model: LLM) -> pd.DataFrame:
    eval_results_file = results_folder / f"{name}_llm_eval_results.csv"
    if eval_results_file.exists():
        eval_results = pd.read_csv(eval_results_file)
        print(f"Loaded {name} evaluation results from {eval_results_file}")
    else:
        eval_results = evaluate(dataset,
                                metrics=[faithfulness, answer_relevancy, context_relevancy, answer_correctness],
                                is_async=True,
                                llm=llm_judge_model,
                                embeddings=embedding_models["gte"],
                                run_config=RunConfig(
                                    timeout=60, max_retries=10, max_wait=60, max_workers=8),
                                ).to_pandas()
        eval_results.to_csv(eval_results_file, index=False)
        print(f"Saved {name} evaluation results to {eval_results_file}")
    return eval_results

def plot_llm_eval(name: str, eval_results: pd.DataFrame):
    # select only the float64 columns (assuming these are the RAGAS metrics)
    ragas_metrics_data = (eval_results
                        .select_dtypes(include=[np.float64]))


    # boxplot of distributions
    sns.boxplot(data=ragas_metrics_data, palette="Set2")
    plt.title(f'{name}: Distribution of RAGAS Evaluation Metrics')
    plt.ylabel('Scores')
    plt.xlabel('Metrics')
    plt.xticks(rotation=45)
    plt.tight_layout()
    plt.show()

    # barplot of means
    means = ragas_metrics_data.mean()
    plt.figure(figsize=(14, 8))
    sns.barplot(x=means.index, y=means, palette="Set2")
    plt.title(f'{name}: Mean of RAGAS Evaluation Metrics')
    plt.ylabel('Mean Scores')
    plt.xlabel('Metrics')
    plt.xticks(rotation=45)

    plt.tight_layout()
    plt.show()
